King Canada

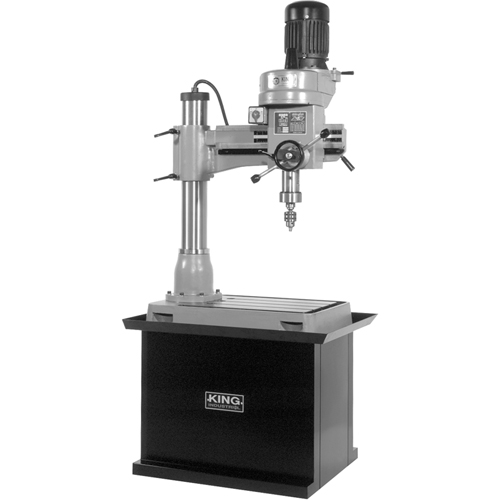

Radial Drilling Machine, 1/2" Chuck, 5 Speed(s), 21-5/8" W X 19-5/8" L, #3 Morse

Model: TZ529

Mfr. No.: KC-35

  • Radial Drilling Machine, 1/2" Chuck, 5 Speed(s), 21-5/8" W X 19-5/8" L, #3 Morse Trail Hammer and Bolt

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$7,251.00 / Each

Chuck Size

1/2"

Speeds

5

Table Dimensions

21-5/8" W X 19-5/8" L

Spindle Taper

#3 Morse

Size

24"L X 34"W X 90"H

Speed

(340-3000 RPM)

  • Spindle is equipped withheavy-duty tapered bearings
  • Head swivels 180¦ and iseasily raised and lowered
  • Head travels up to 14"
  • Includes: Forward reverse switch,1/2" chuck with key and stand ; ; Model No. TZ529; Mfg. No. KC-35; Chuck size: 1/2"; Speeds: 5 (340-3000 RPM); Table size: 21 5/8" x 19 5/8"; Spindle Taper: #3 Morse; Motor: 1.5 HP, 11 A, ; single phase, 60 Hz; Voltage: 220 V; Dimensions: 24" L x 34" W x 90" H; Weight: 638 lbs.
